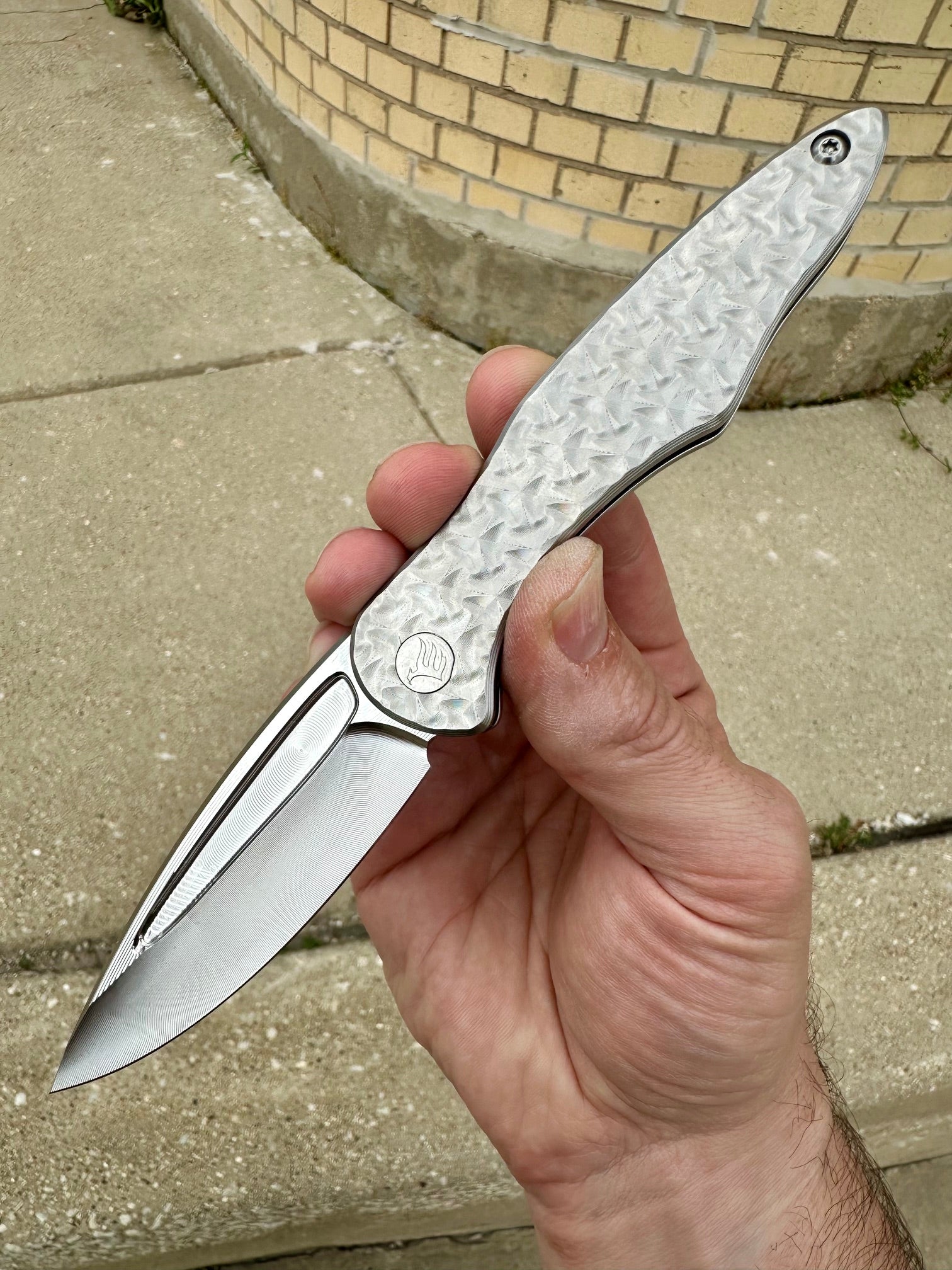

Brimwulf - As Machined Ray Tessellation Geodesic Full Scale

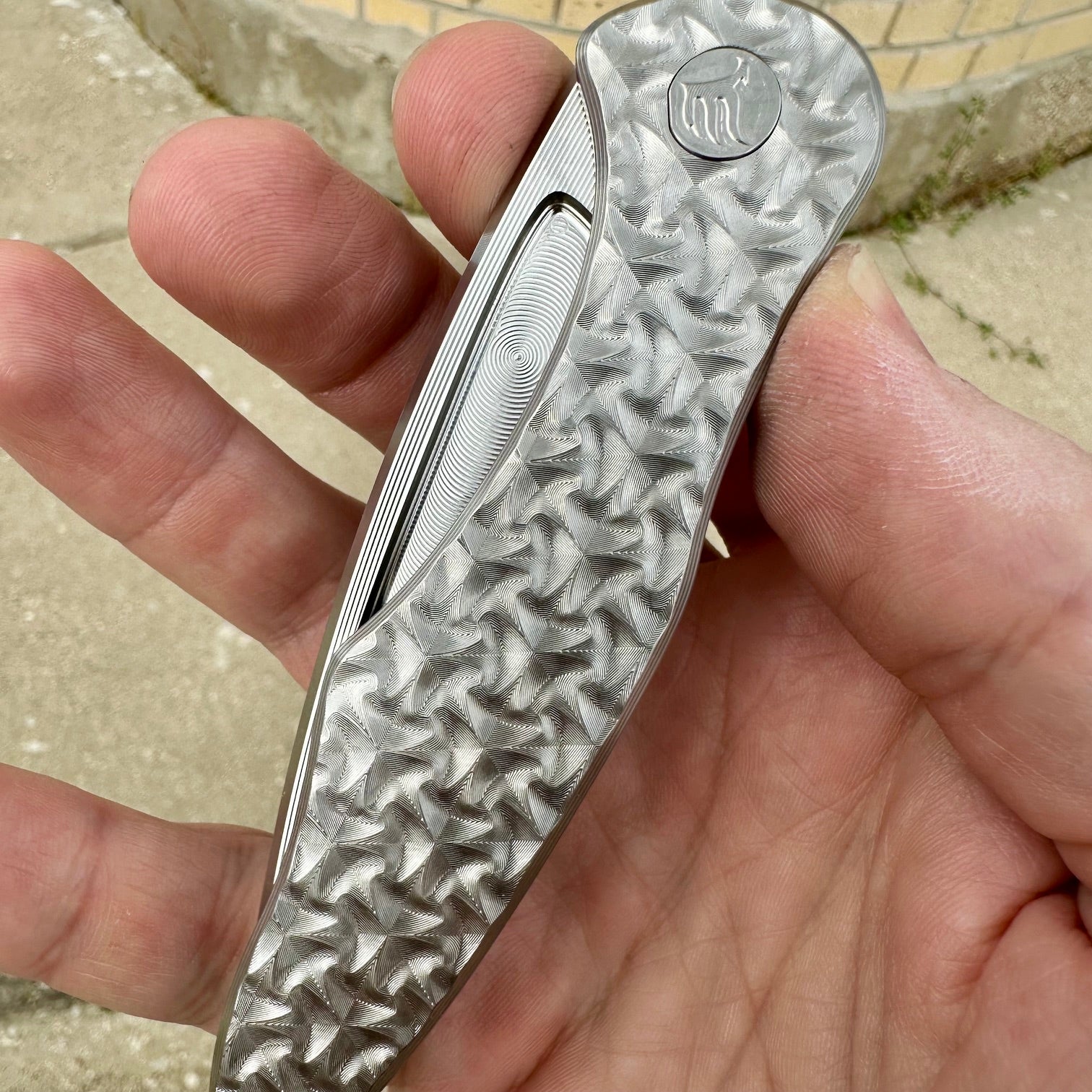

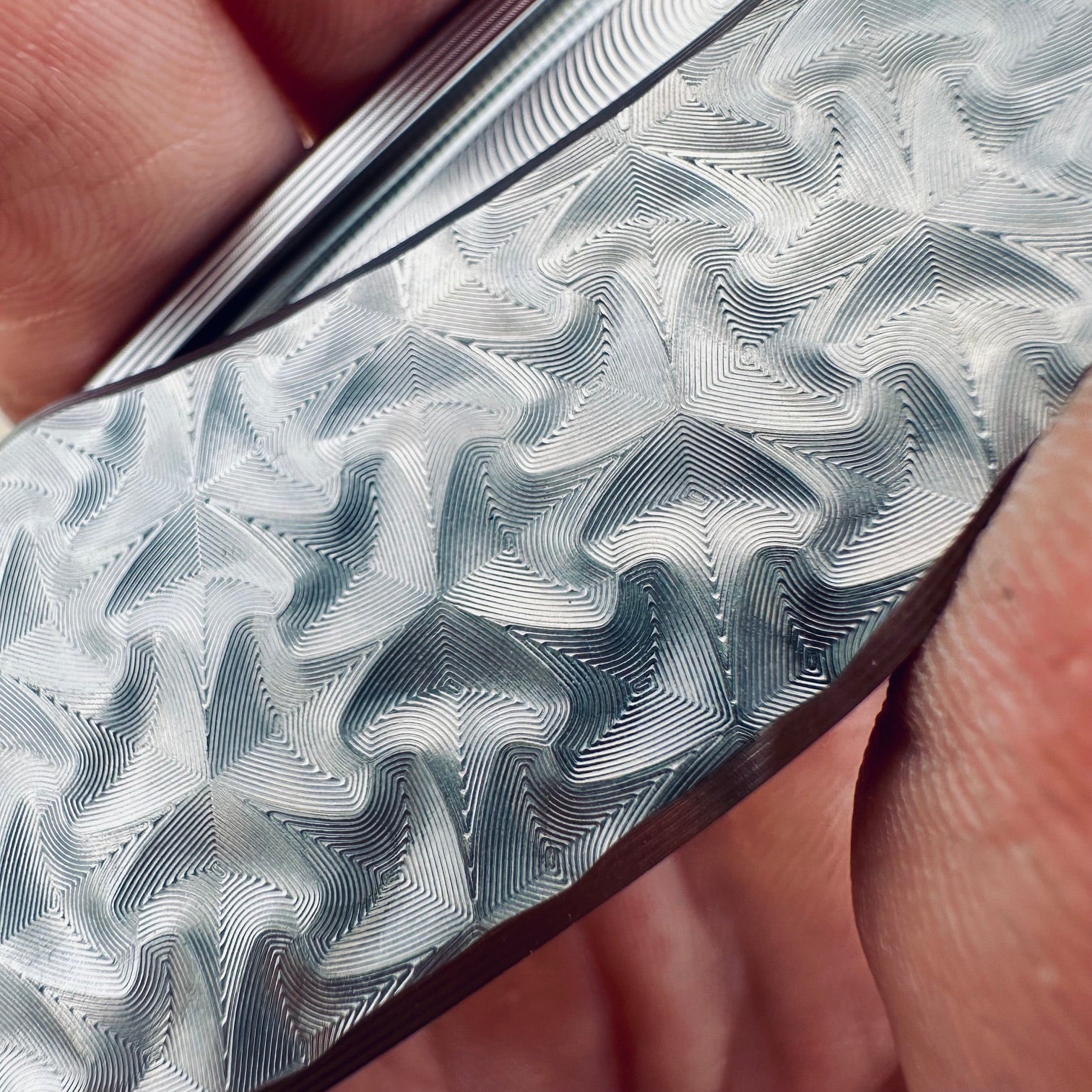

This is the new Stingray "Ray" Tessellation with real depth of about .02" in the center of each individual ray.

Quick Specs

3.49" Blade Edge - CPM-154SS 61-63HRC

8.15" OAL - All Ti and Stainless hardware with Ti Scales

Weighs 3.50 oz - Very light for a Full Size Handle and Blade

The Brimwulf is designed and machined in our Chicago shop, it's the result of multiple test mules, iterated locking geometry, and a relentless focus on how a folding knife should actually feel in hand — smooth action, a stiff detent, and a crisp, clean close.

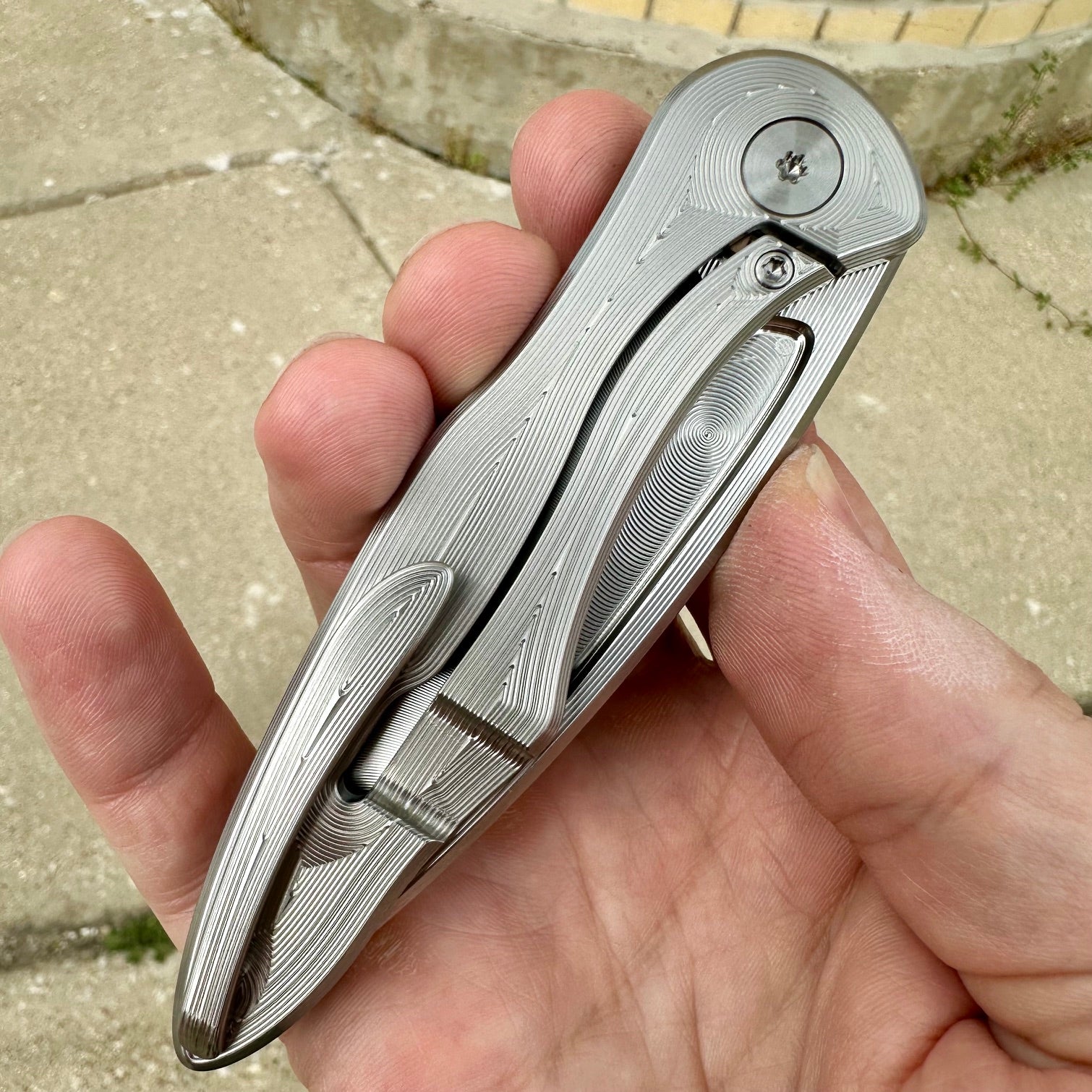

The blade and scales wear an as-machined, hard-milled bevel finish by design. This is harder than it looks which is why it is not a common finish option.

Every Brimwulf is built one-piece flow in a small U.S. shop — programmed, fixtured, and assembled/checked by hand.

More details:

Blade Length: 3.49"
OAL: 8.15"
Closed Length: 4.63"
Blade Thickness: .160"
Scale Thickness: .150"
Blade Material: CPM-154SS
Blade Style: Drop Point
Blade Grind: Hollow - Variable Radius -3D Machined - .010" BTE
Lock Insert Material: AEBL Stainless
Detent Ball: Zirconium Oxide
Handle, Clip, Back Spacer, Hardware Material: Aerospace 6Al-4V Titanium (Grade 5)
Locking Mechanism: RIL (Reeve Integral Lock)
Pivot Assembly: Captive Show Side on JK Designs Pivot Barrels & Lock Screw
Carry Type: Right handed, Tip Up
All Components and materials are sourced from or made by USA companies.
